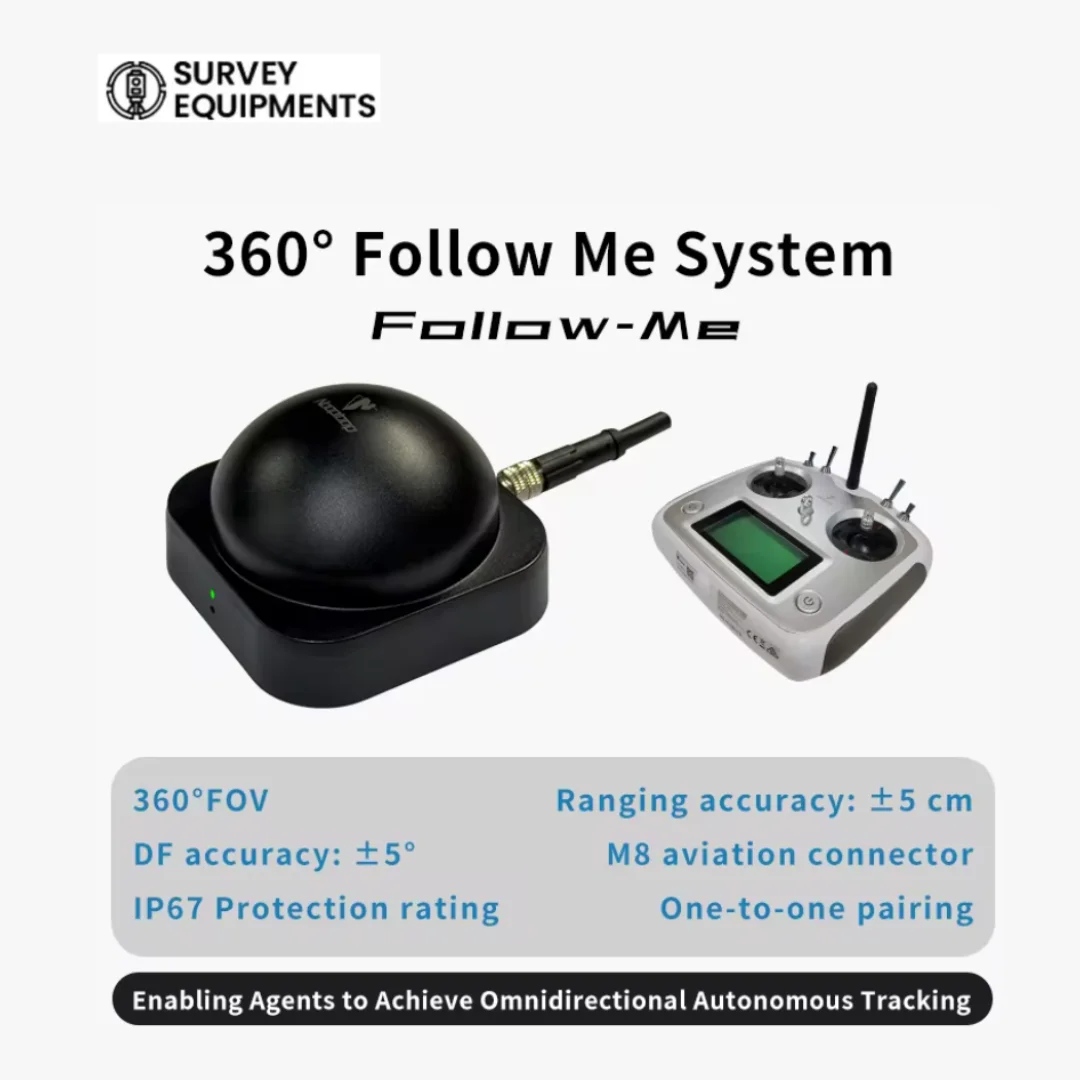

Follow Me 360° Omnidirectional Following System | Idle Cycle UWB Indoor Positioning Angle Module

The Follow-Me 360° Omnidirectional Following System is a high-precision UWB indoor positioning and autonomous tracking solution developed by NOOPLOOP. Combining ranging, angle measurement, communication, and remote control into a single platform, the system delivers real-time 360° perception with ±5 cm ranging accuracy and ±5° angle precision.

Designed for robotics, AGVs, warehouse automation, and intelligent machines, it supports reliable operation in challenging indoor environments with IP67 protection and advanced anti-interference algorithms.

The NOOPLOOP Follow-Me system integrates ultra-wideband (UWB) technology with array antennas to provide accurate distance, orientation, and pitch data. Its omnidirectional field of view enables autonomous robots and mobile platforms to track targets from any direction without requiring complex camera systems.

Built for industrial automation and robotics, the system combines positioning, communication, and remote control into one compact solution.

Available Models

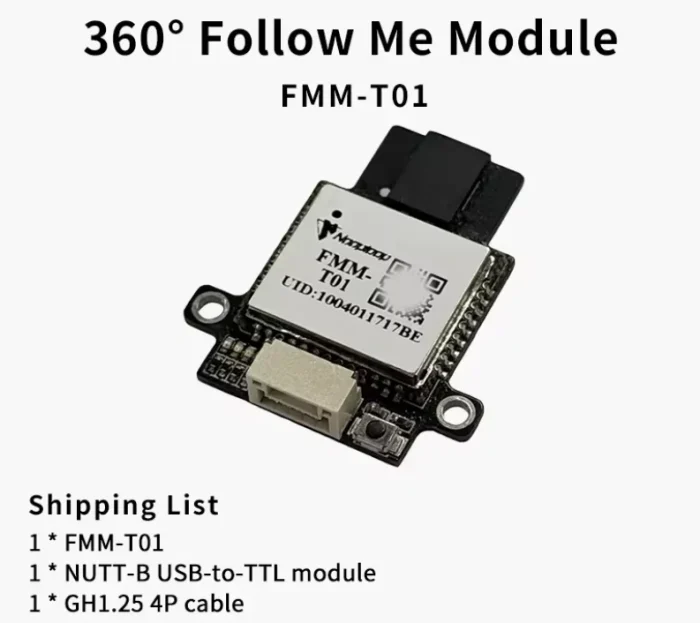

FMM-T01: 360° Follow Me Module

Package Includes:

• 1 × FMM-T01 module
• 1 × NUTT-B USB-to-TTL module
• 1 × GH1.25 4P cable

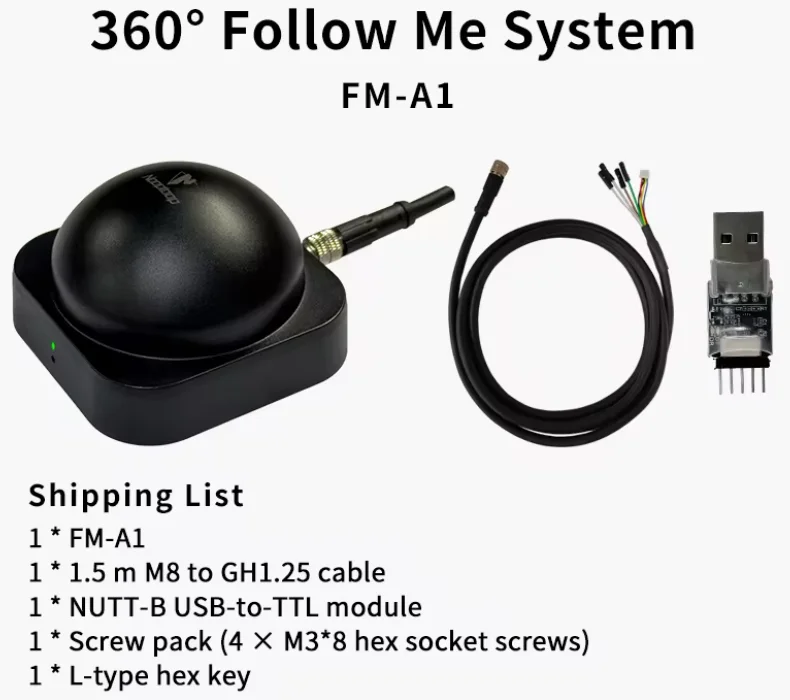

FM-A1: 360° Follow Me System Anchor

Package Includes:

• 1 × FM-A1 anchor
• 1 × 1.5 m M8 to GH1.25 cable
• 1 × NUTT-B USB-to-TTL module
• 1 × screw pack
• 1 × L-type hex key

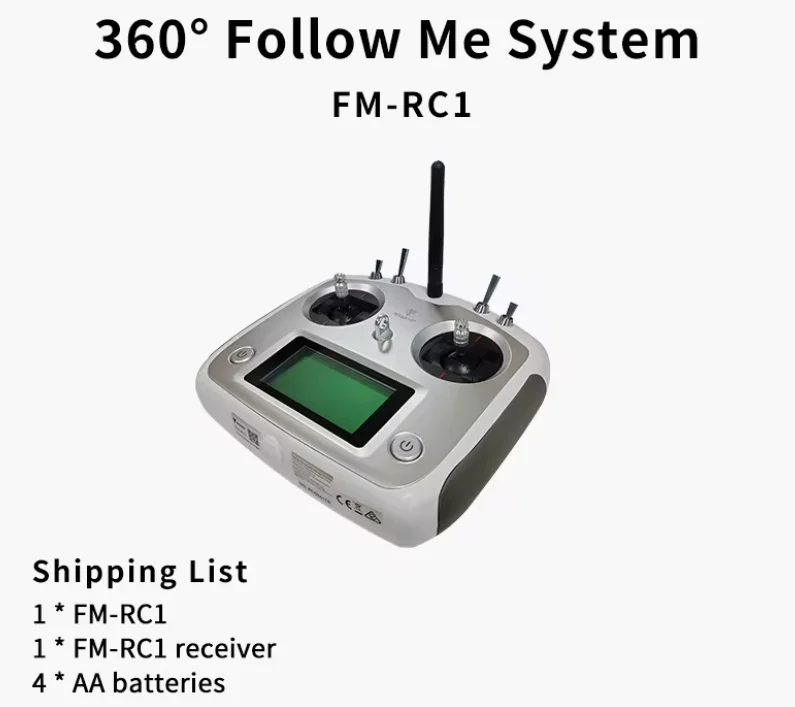

FM-RC1: 360° Follow Me Remote Control

Package Includes:

• 1 × FM-RC1 controller
• 1 × FM-RC1 receiver
• 4 × AA batteries

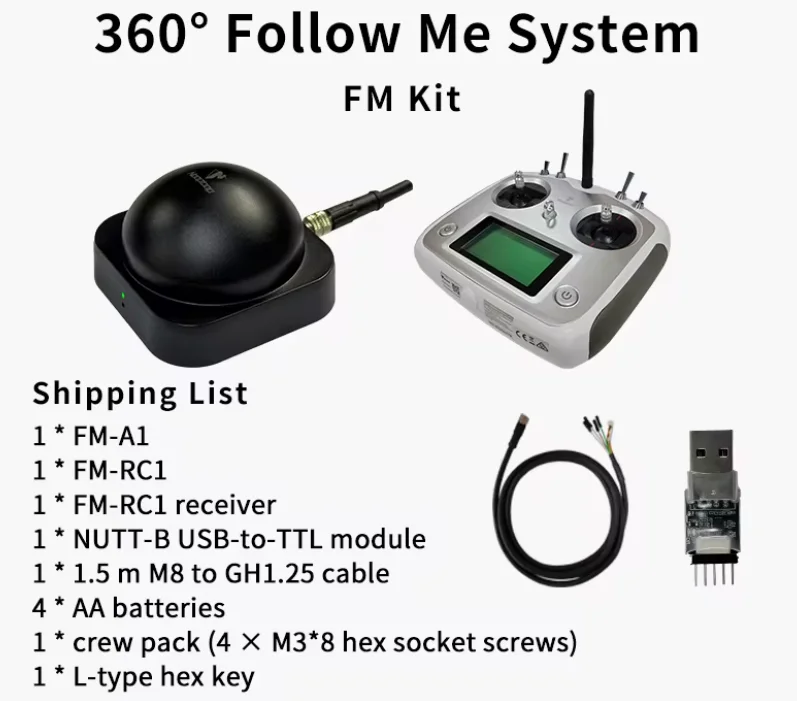

FM Kit: Complete Follow-Me Tracking Kit

Package Includes:

• 1 × FM-A1 anchor
• 1 × FM-RC1 remote controller
• 1 × FM-RC1 receiver
• 1 × NUTT-B USB-to-TTL module
• 1 × M8 to GH1.25 cable
• 4 × AA batteries
• Mounting hardware
• L-type hex key

Key Features of the Follow-Me UWB Positioning System

360° Omnidirectional Field of View

The advanced antenna array provides full 360-degree coverage, allowing robots and autonomous platforms to maintain stable tracking regardless of direction.

High-Precision Positioning and Angle Measurement

Using Time-of-Flight (ToF) ranging and array antenna technology, the system delivers:

• Distance accuracy up to ±5 cm
• Azimuth accuracy up to ±5°
• Real-time updates at 25 Hz
• Simultaneous ranging, positioning, and communication

Integrated Auto-Follow and Remote Control

The FM-RC1 controller combines traditional remote-control functionality with a built-in UWB tracking tag, enabling:

• Autonomous following mode
• Manual robot control
• Seamless switching between operation modes

Industrial-Grade Protection

Designed for demanding environments, the Follow-Me system features:

• IP67 waterproof protection
• Surge and ESD protection
• High-temperature resistance
• Pull-resistant drag-chain cable
• Rugged M8 aviation connector

Strong Anti-Interference Performance

Advanced hardware and software algorithms minimize interference caused by metal structures, weak signals, and non-line-of-sight (NLoS) environments.

Intelligent System Capabilities

• One-to-one pairing
• Multi-system operation without interference
• Stable performance in complex industrial environments
• Real-time angle and distance output
• UART communication support
• ROS driver compatibility

Applications of the Follow-Me Autonomous Tracking System

The NOOPLOOP Follow-Me system is suitable for a wide range of intelligent mobility and automation applications.

Common Use Cases

• Autonomous mobile robots (AMR)
• Automated guided vehicles (AGV)
• Warehouse robots
• Delivery robots
• Golf caddy robots
• Quadruped robots
• Industrial inspection robots
• Smart factory automation
• Research and robotics development
• Indoor navigation systems

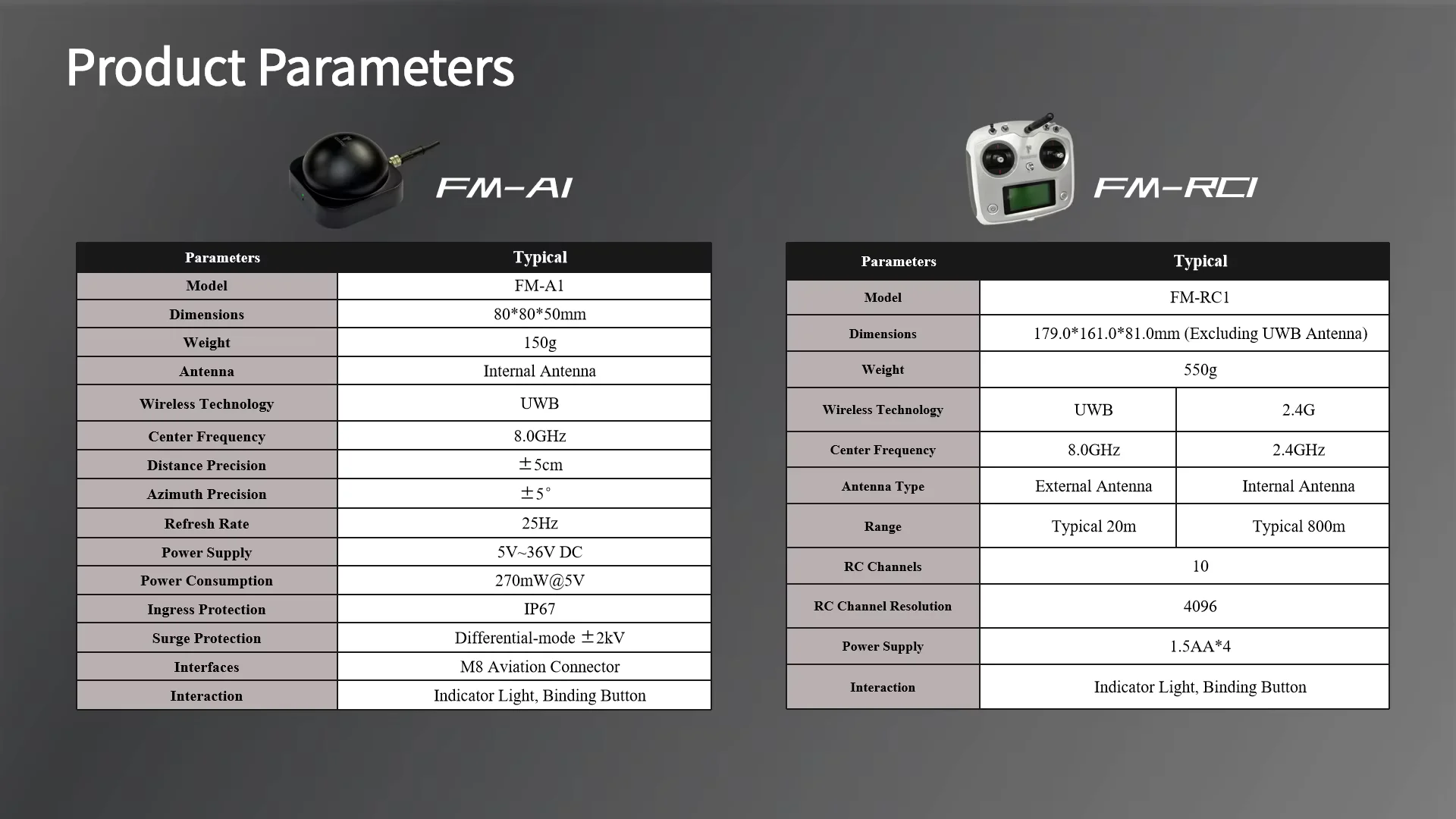

Technical Specifications: FM-A1

Technical Specifications: FM-RC1

Connectivity and Integration

The Follow-Me platform is engineered for rapid deployment and integration into robotics systems.

Supported Development Resources

• Windows testing software
• Ubuntu testing software
• ROS driver package
• Standard C/C++ parsing code
• Development documentation
• Technical support from NOOPLOOP

Interface Features

• M8 aviation connector
• UART communication
• USB-to-TTL support
• Fast system pairing
• Plug-and-play testing tools

Why Choose the NOOPLOOP Follow-Me System?

The Follow-Me 360° positioning platform simplifies autonomous tracking by combining multiple technologies into one compact device.

Benefits

• Eliminates the need for complex camera tracking systems
• Delivers reliable indoor positioning data
• Supports autonomous and manual operation
• Operates in challenging environments
• Reduces integration time for robotics projects
• Provides industrial-grade durability

Frequently Asked Questions

What is the Follow-Me 360° Omnidirectional Following System?

The Follow-Me system is a UWB-based positioning and tracking solution that combines distance measurement, angle detection, communication, and remote control for autonomous robots and mobile platforms.

What positioning accuracy does the system provide?

The FM-A1 anchor delivers typical ranging accuracy of ±5 cm and azimuth accuracy of ±5°.

Can multiple Follow-Me systems operate simultaneously?

Yes. The system supports one-to-one pairing and interference-resistant operation, allowing multiple units to function in the same environment.

Is the Follow-Me system waterproof?

Yes. The FM-A1 module features an IP67 protection rating for reliable operation in industrial and outdoor conditions.

Does the system support ROS integration?

Yes. NOOPLOOP provides ROS drivers, software tools, and C/C++ development resources for integration into robotics projects.

What communication technology does the system use?

The system uses Ultra-Wideband (UWB) technology operating at a center frequency of 8.0 GHz.

Which robots can use the Follow-Me system?

The system is suitable for AGVs, AMRs, quadruped robots, delivery robots, warehouse automation platforms, golf caddies, and custom robotics applications.
