1.5 Inch Ball Reflector Control Kit Copper Coated Tooling Ball Prism (TBR) Kit For Total Station Surveying

The 1.5 Inch Ball Reflector Control Kit is a high-precision surveying and monitoring solution designed for use with total stations, deformation monitoring systems, industrial metrology, and control point measurement applications.

Featuring copper-coated tooling ball prisms, precision-engineered nests, adapters, and accessories, this kit provides reliable targeting accuracy, repeatable positioning, and efficient field deployment for demanding surveying environments.

Engineered for survey professionals, construction teams, geodetic monitoring specialists, and industrial measurement applications, this Tooling Ball Reflector (TBR) Kit delivers exceptional accuracy and repeatability.

The copper-coated ball reflectors provide excellent reflectivity for total station measurements, while the included mounting accessories support a wide range of installation and monitoring scenarios.

Whether used for structural monitoring, tunnel surveying, bridge deformation analysis, machine alignment, or control network establishment, this kit offers dependable performance in the field.

Key Benefits

Exceptional Measurement Accuracy

• Prism accuracy of 3 arcsec beam deviation
• Supports precise total station observations
• Designed for repeatable and reliable measurements

Complete Survey Control Solution

• Includes ball reflectors, nests, adapters, probe, tripod adapter, and mounting accessories
• Ready for immediate deployment in monitoring and control applications
• Suitable for permanent and temporary survey installations

Durable Field Construction

• Copper-coated tooling ball prisms for enhanced performance
• Hardened 440C material components for extended durability
• Designed to withstand demanding site conditions

Flexible Installation Options

• Compatible with metric M8 and imperial 3/8″ thread systems
• Multiple nest configurations for various mounting requirements
• Magnetic, glued, self-tapping, and tripod-based installation methods

Features of the 1.5 Inch Tooling Ball Prism Control Kit

• 1.5-inch copper-coated ball reflector design
• High-accuracy prism measurement system

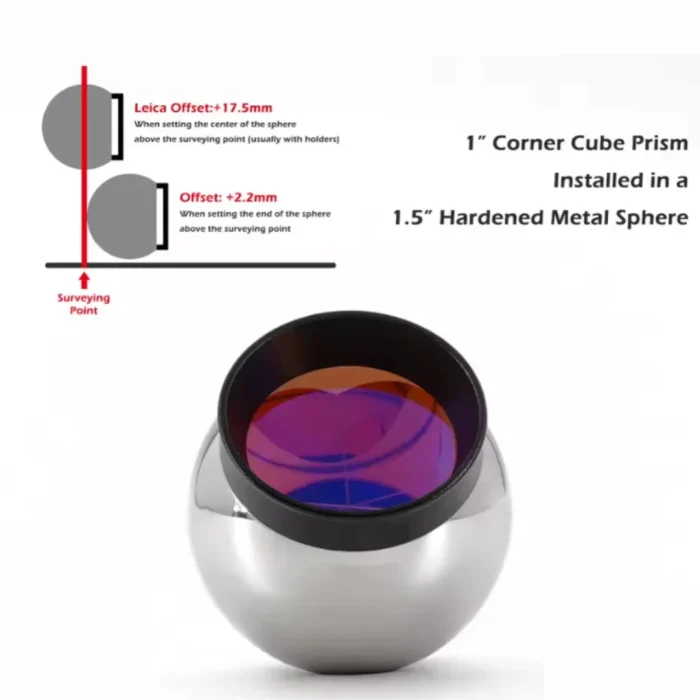

• Swiss offset of +17.5 mm
• Absolute prism constant of -16.9 mm
• Precision centering capability down to 0.05 mm
• Multifunctional mounting options
• Dual-side magnetic drift nests
• Replaceable hardened probe tip
• Compatible with total stations used in monitoring and surveying applications
• Ideal for deformation monitoring and industrial measurement projects

Technical Specifications

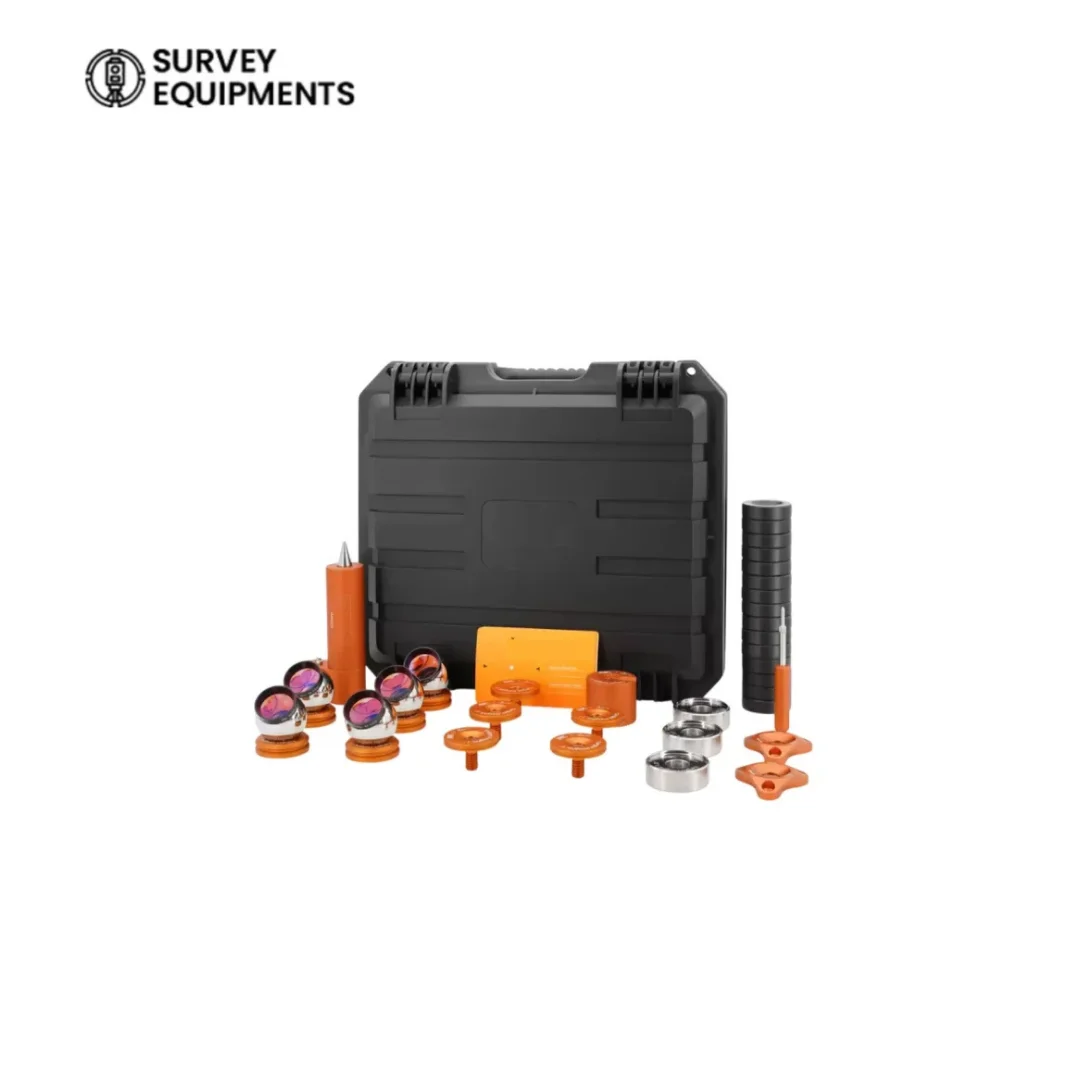

Kit Contents

Ball Reflectors

• 5 × Copper-Coated Ball Reflectors

Drift Nests

• 5 × Drift Nests
• Target Height: 1″
• Double-Sided Magnets
• 0.05 mm Centering Error

Thread Adapters

• 5 × Thread Adapters
• Target Height: 1″
• M8 Metric Thread or 3/8″ Imperial Thread
• 0.05 mm Centering Error

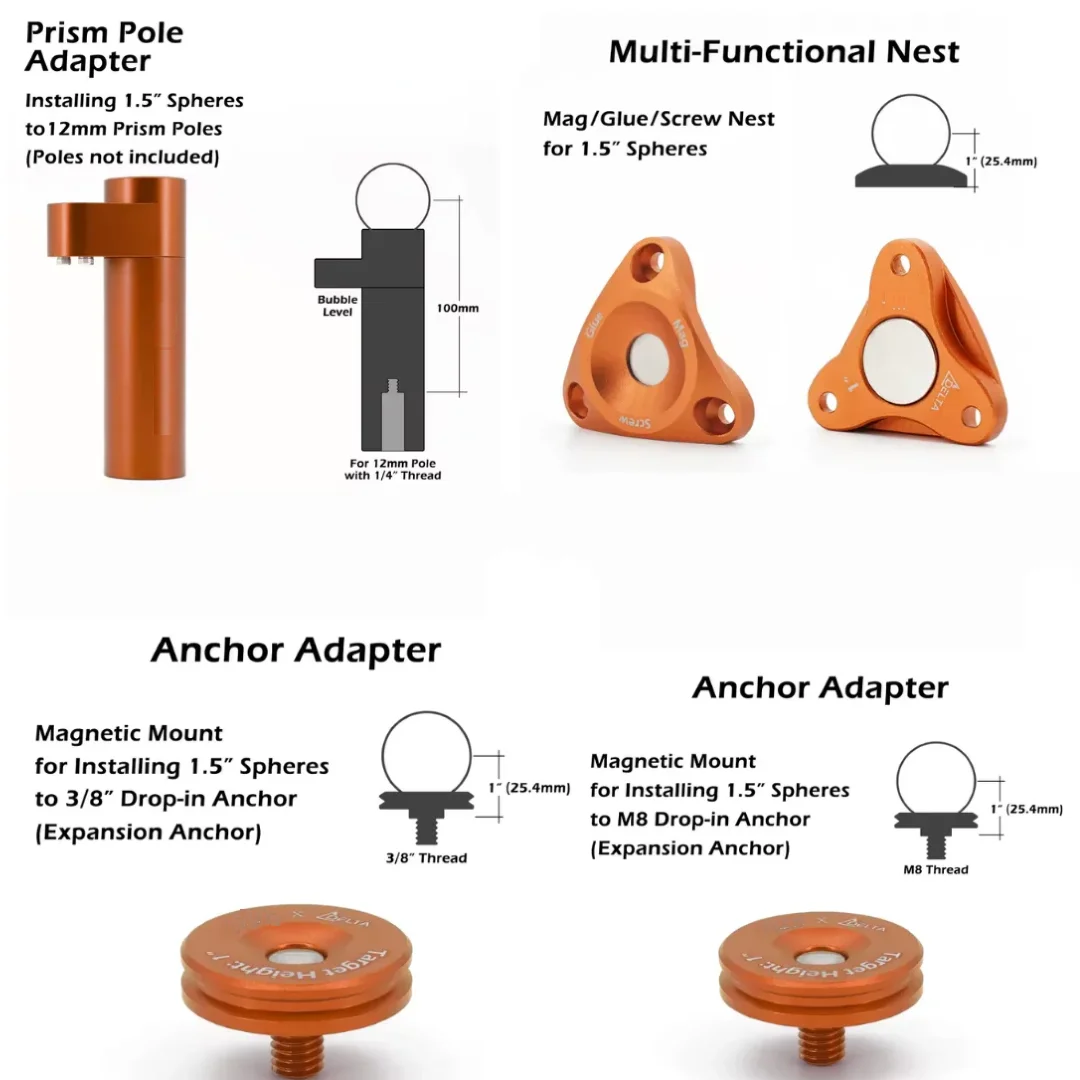

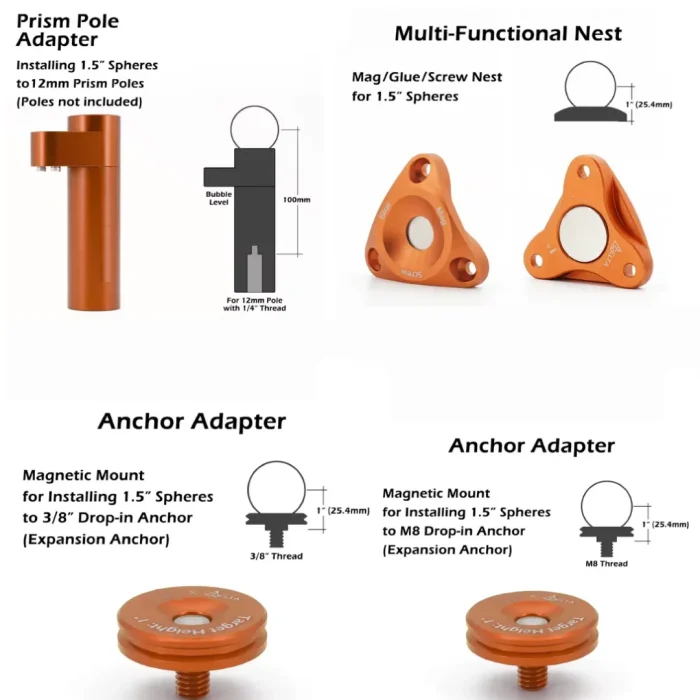

Multifunctional Nests

• 2 × Multifunctional Nests
• Glue, Magnet, and Self-Tapping Installation Options
• Target Height: 1″
• 0.05 mm Centering Error

Self-Tapping Adapters

• 3 × Self-Tapping Adapters
• Compatible with X Delta Drift Nest
• Height Offset: 1.5
• 440C Hardened Material
• 0.05 mm Centering Error

Tripod Adapter

• 1 × Tripod Adapter
• Target Height: 2″
• 5/8″ Bottom Thread
• 0.05 mm Centering Error

Nylon Nests

• 15 × Nylon Nests
• Single Magnet
• Target Height: 1″
• 0.10 mm Centering Error

Probe

• 1 × Precision Probe
• Replaceable Tip
• 440C Hardened Material

Pole Handle

• 1 × Pole Handle
• Target Height: 100 mm
• 1/4″ Bottom Thread
• 0.10 mm Centering Error

Marker Stickers

• 10 × Marker Stickers

Applications

The 1.5 Inch Ball Reflector Control Kit is suitable for:

• Total station surveying
• Structural monitoring projects
• Bridge deformation monitoring
• Tunnel construction monitoring
• Industrial metrology
• Machine alignment and calibration
• Construction layout control
• Mining monitoring systems
• Rail and transportation infrastructure surveys
• Geodetic control networks

Why Choose This Tooling Ball Reflector Kit?

This surveying kit combines precision-engineered tooling ball prisms with versatile mounting accessories to deliver dependable results in professional measurement environments.

The combination of high prism accuracy, durable materials, and multiple installation methods makes it a practical solution for surveyors, engineers, contractors, and monitoring specialists seeking consistent and repeatable measurement performance.

Frequently Asked Questions

What is a tooling ball reflector used for?

A tooling ball reflector is used as a precise measurement target for total stations and monitoring systems. It helps establish highly accurate reference points for surveying, alignment, and deformation monitoring applications.

Is this kit compatible with most total stations?

Yes. The 1.5-inch ball reflector kit is designed for use with a wide range of total stations commonly used in construction, surveying, industrial metrology, and monitoring projects.

What is the prism accuracy of this reflector kit?

The kit features a prism accuracy of 3 arcseconds beam deviation, helping survey professionals achieve highly accurate measurements.

What mounting options are included?

The kit includes magnetic nests, threaded adapters, multifunctional nests, self-tapping adapters, tripod mounting options, and nylon nests, allowing flexible installation in various environments.

What are the prism offset values?

The reflector provides a Swiss Offset of +17.5 mm and an Absolute Prism Constant of -16.9 mm, supporting accurate total station configuration.

Is the kit suitable for deformation monitoring projects?

Yes. The high centering accuracy, repeatable positioning, and durable construction make this kit ideal for structural health monitoring, bridge monitoring, tunnel surveys, and long-term deformation analysis.

What material is used in the critical components?

Selected components such as the probe and self-tapping adapters are manufactured from hardened 440C stainless material, offering excellent wear resistance and durability in field conditions.
