Trimble GCS900 Generic Dozer Install Wiring Harness with Brackets Machine Control

The Trimble GCS900 Dozer Wiring Harness Kit is a complete machine control installation solution designed for Trimble GCS900 grade control systems.

This comprehensive wiring harness package includes front and rear harnesses, power cables, radio connections, quick-disconnect components, and mounting brackets for efficient integration of machine control hardware on dozers and earthmoving equipment.

Key Benefits of the Trimble GCS900 Harness Kit

• Complete wiring solution for Trimble GCS900 machine control systems
• Simplifies installation and equipment integration
• Supports reliable communication between machine control components
• Includes power, radio, cab, and light bar connections
• Quick-disconnect cable enables easier maintenance and servicing
• Includes mounting brackets for display, mast, and radio installation
• Durable construction suitable for demanding construction environments
• Ideal for dozers, earthmoving equipment, and grade control applications

Features of the Trimble GCS900 Wiring Harness Assembly

Complete Connectivity Package

This installation kit contains multiple harnesses and cables designed to connect critical machine control components into a single integrated system.

Integrated Power Distribution

Includes dedicated power cables and switched power harnesses to provide stable electrical connections throughout the machine control network.

Radio and Communication Support

The included radio cable supports communication functions necessary for GPS machine control and grade management operations.

Installation Hardware Included

Trimble mast, display, and radio brackets are included to simplify mounting and equipment setup.

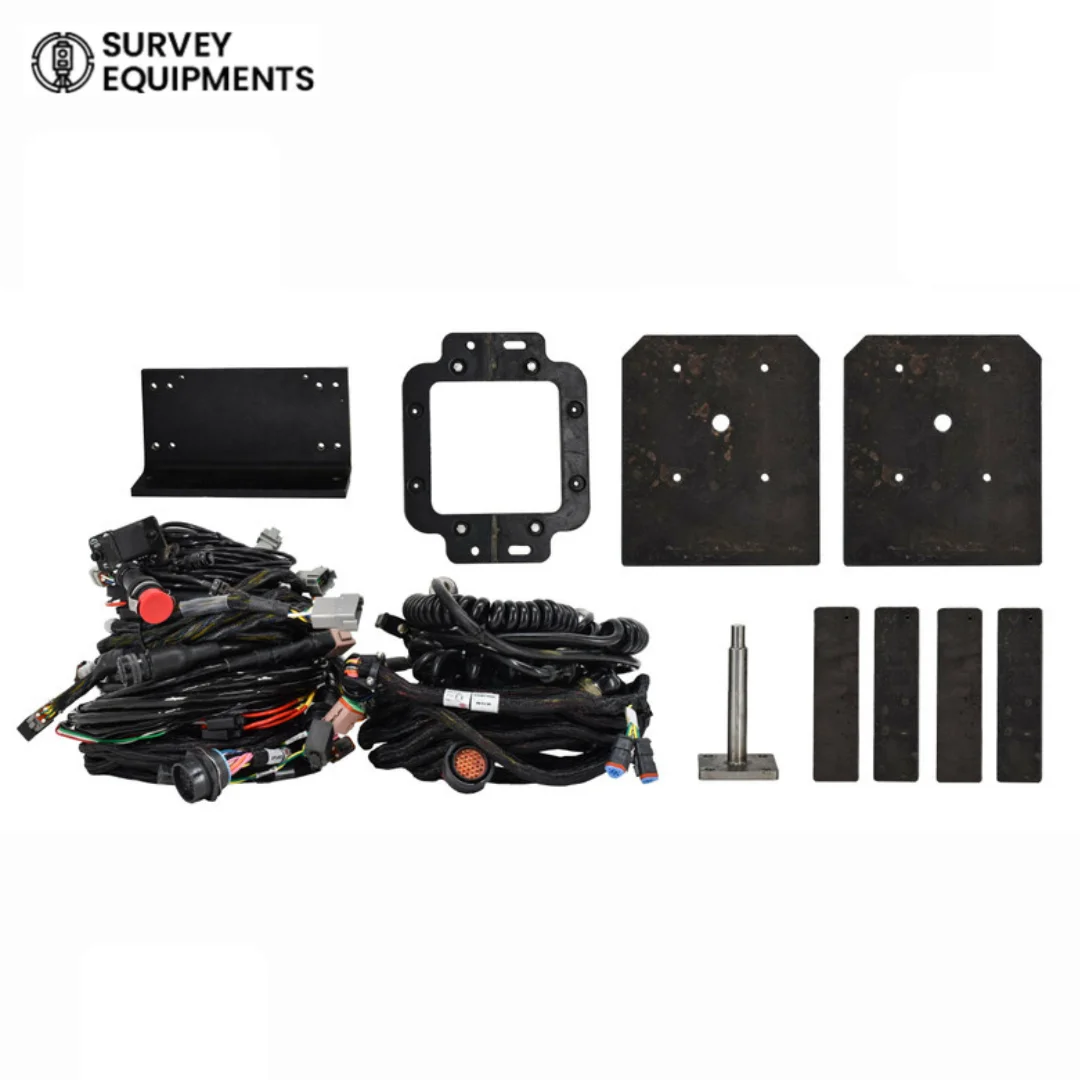

What’s Included

• Front Harness Cable: P/N 0395-9020
• Quick Disconnect Cable: P/N 0395-9150
• Light Bar Harness Cable: P/N 54438
• Switched Power Cable without PM400: P/N 57726
• Cab Harness Cable: P/N 54020
• Radio Cable: P/N 0395-9470
• Rear Harness Cable: P/N 0395-9010
• Power Cable: P/N 0395-9490
• Trimble Mast Brackets
• Trimble Display Brackets
• Trimble Radio Brackets

Technical Specifications

Applications and Use Cases

Dozer Grade Control Installation

Ideal for installing or upgrading Trimble GCS900 grade control systems on dozers used for precision grading and site preparation.

Construction Equipment Integration

Provides organized cable routing and reliable system connections for machine control deployments across construction fleets.

Machine Control System Replacement

Suitable for replacing damaged, worn, or outdated wiring harnesses in existing Trimble machine control setups.

Why Choose This Trimble GCS900 Harness Kit?

Machine control systems depend on reliable electrical and communication connections. This complete Trimble GCS900 wiring harness package reduces installation complexity while helping maintain consistent performance in demanding construction environments.

With power, communication, display, and mounting components included, installers can efficiently integrate essential machine control hardware using a single comprehensive kit.

Frequently Asked Questions

What is the Trimble GCS900 Wiring Harness Kit used for?

The kit is used to install and connect machine control components within a Trimble GCS900 grade control system on dozers and other construction equipment.

Does this kit include mounting hardware?

Yes. The package includes Trimble mast brackets, display brackets, and radio brackets to support equipment installation.

Is this a complete machine control installation harness package?

Yes. It includes front and rear harnesses, power cables, radio cable, quick disconnect cable, cab harness, light bar harness, and mounting brackets.

Can this harness kit be used for replacement installations?

Yes. It is suitable for replacing existing wiring harness assemblies or supporting new machine control installations.

What type of equipment is this kit designed for?

The kit is primarily designed for dozers and other construction equipment operating with Trimble GCS900 machine control systems.
