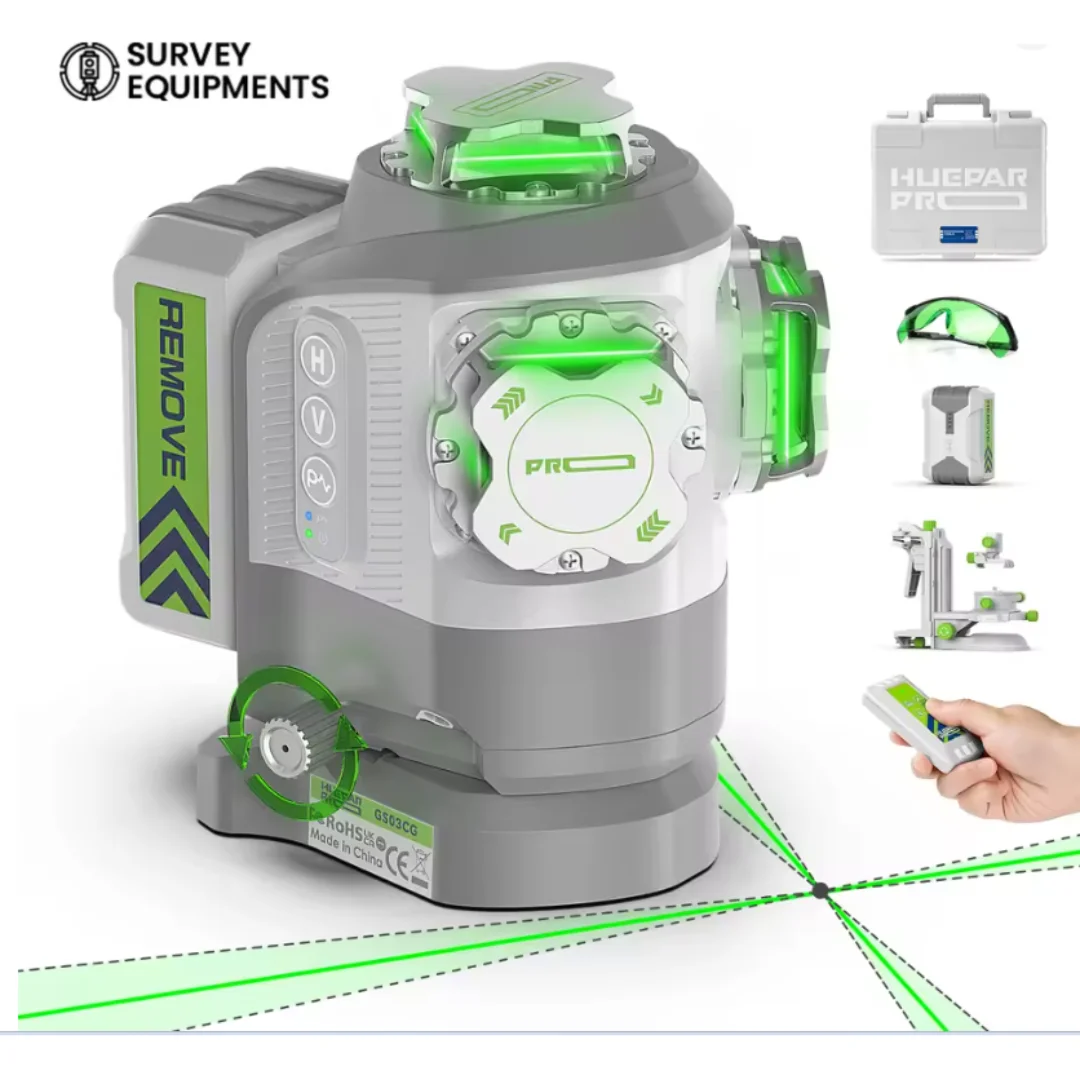

GS03CG 3D Laser Level Self Leveling with Pivot Around Point Fine Adjustment Green Lazer Leveler Tool ±2mm Superior Accuracy

The GS03CG 3D Green Laser Level is a professional self-leveling laser alignment tool designed for construction, interior finishing, framing, tiling, and installation projects.

Equipped with 12 green laser lines, pivot-around-point fine adjustment, and ±2 mm accuracy at 10 meters, it delivers precise horizontal and vertical leveling for demanding job sites.

The GS03CG combines high-visibility green laser technology with advanced alignment controls to help professionals achieve accurate layouts and measurements.

Its innovative pivot fine-adjustment system allows precise vertical alignment while maintaining the laser intersection point, making it ideal for framing, partition walls, cabinetry, and other detailed installation tasks.

With self-leveling, manual, and pulse modes, this laser level adapts to indoor and outdoor environments while offering reliable performance in harsh working conditions.

Key Features of the GS03CG Laser Level

Pivot-Around-Point Fine Adjustment System

The built-in micro-adjustment mechanism enables fine tuning within a 10° range without moving the vertical laser intersection point. This feature provides superior accuracy for:

• Wall framing and partition installation
• Point-to-point layout work
• Ceiling alignment
• Door and window positioning
• Cabinet and shelving installation

High-Visibility 3 x 360° Green Laser Projection

The GS03CG projects twelve green laser lines across three 360-degree planes, delivering clear horizontal and vertical references.

Benefits include:

• Brighter visibility than standard red lasers
• Full-room coverage
• Improved accuracy in indoor environments
• Enhanced productivity on construction sites

±2 mm Precision at 10 Meters

Engineered for professional use, the laser level provides:

• Accuracy of ±2 mm at 10 m
• Working distance up to 40 m (131 ft)
• Extended range up to 70 m with a compatible laser receiver
• Fast self-leveling in less than 3 seconds

Self-Leveling, Manual, and Pulse Modes

The smart pendulum system automatically levels the device within a compensation range of 3° ±1°.

Available operating modes include:

• Self-leveling mode for automatic correction
• Manual mode for angled layouts
• Pulse mode for outdoor and long-range applications

8000mAh Rechargeable Battery with Type-C Charging

The high-capacity removable lithium-ion battery supports long working sessions and convenient charging.

Battery features:

• 8000mAh capacity
• More than 8 hours of operation
• Type-C charging interface
• Approximately 5-hour charging time
• Removable battery design

Remote Control and Magnetic Mounting System

The included remote control allows operators to switch laser lines and pulse mode from a distance of up to 10 meters.

The multifunction magnetic bracket offers:

• 360° rotation
• Vertical and horizontal fine adjustment
• Quick attachment to metal surfaces
• Compatibility with tripods and mounting poles

Benefits of the GS03CG Green Laser Level

• Professional-grade ±2 mm accuracy
• Bright green laser for improved visibility
• Three 360° laser planes with 12 lines
• Pivot fine-adjustment mechanism
• Self-leveling and manual projection modes
• Long-lasting rechargeable battery
• Remote control operation
• Rugged IP54-rated construction
• Suitable for indoor and outdoor projects
• Compact design with carrying case included

Applications and Use Cases

Construction and Framing

Perfect for:

• Wall framing
• Steel stud installation
• Drywall positioning
• Structural layouts

Flooring and Tiling

Ideal for:

• Floor tile installation
• Wall tiling
• Backsplash alignment
• Surface leveling

Interior Installation

Suitable for:

• Cabinet installation
• Shelving systems
• Ceiling fixtures
• Window and door alignment

Surveying and Outdoor Work

When used with a compatible receiver, the laser level supports:

• Site layout
• Outdoor measurements
• Landscaping
• General construction projects

Specifications: GS03CG Laser Level

Package Contents

The package includes:

• 1 × GS03CG Green 3D Laser Level
• 1 × 360° Multifunction Magnetic Bracket
• 1 × Green Laser Target Plate
• 1 × 8000mAh Rechargeable Battery
• 1 × Type-C Charging Cable and Power Adapter
• 1 × Remote Control
• 1 × Hard Carrying Case
• 1 × User Manual

Frequently Asked Questions

What is the accuracy of the GS03CG laser level?

The GS03CG delivers professional-grade accuracy of ±2 mm at 10 meters, making it suitable for precision construction, framing, and installation tasks.

Does the GS03CG support self-leveling?

Yes. The laser level automatically self-levels within a compensation range of 3° ±1° and completes leveling in less than three seconds.

Can this laser level be used outdoors?

Yes. Pulse mode extends the operating range when used with a compatible laser receiver, making it suitable for outdoor applications.

How long does the battery last?

The 8000mAh rechargeable battery provides more than eight hours of continuous operation with all laser lines activated.

What is the benefit of the pivot-around-point adjustment feature?

The pivot fine-adjustment system allows precise movement of vertical laser lines while keeping the intersection point fixed, improving alignment accuracy for framing, partitions, and installations.

Is the GS03CG compatible with tripods?

Yes. The laser level includes 1/4″-20 and 5/8″-11 threaded mounts, allowing connection to standard tripods and mounting poles.

Is the GS03CG protected against dust and water?

Yes. The device features an IP54-rated housing, providing resistance against dust and water splashes for reliable performance on job sites.
